4139kg Tough Dog GVM Upgrade to suit Toyota Land Cruiser 300 Series


Install: Post Registration (includes mod plate)
Price:
Sale price$5,706.00

Description

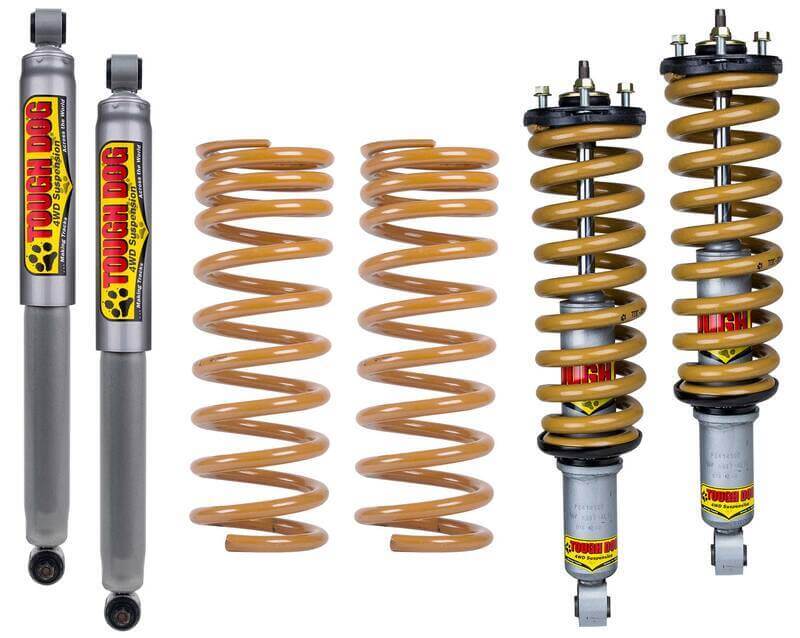

4139kg Tough Dog GVM Upgrade to suit  Toyota Land Cruiser 300 Series

  • This GVM kit provides a 40-50mm lift for loaded vehicles, with additional height gains for unloaded vehicles.
  • 100% legal, engineered, road tested, approved and certified.
  • Suitable for Mining Companies, Farmers, Tradesmen, Tourers and offroad enthusiasts
  • Vehicle warranty is NOT affected when a GVM Upgrade is fitted.
  • Once the GVM is installed in your 300 Series it will be mod plated and engineered to be state compliant.
High Level Product Details
  • GVM Increase to 4139kg
  • 859kg GVM upgrade.
  • No GCM increase.


GVM Kits will only be can only be installed by TJP  & 4X4 Therefore pricing includes fitting.

All our kits when install is choosen inlcudes fitment at TJP Auto & 4x4, wheel alignment and ADAS Calibrations that may be requierd



Carry more - Safely & Legally

The allowable payload on most modern 4WDs seems great on paper, but gets quickly eaten up when accessories, gear and passengers get loaded in.
Remaining under the vehicles Gross Vehicle Mass (GVM) can seem like an impossible feat.
Tough Dog Suspension is a recognised Second Stage Manufacturer (SSM) which allows us to develop and federally certify components to increase your vehicle's GVM. Maximise your allowable payload without risking your roadworthiness!
Each complete GVM kit has been extensively tested to ensure ADR compliance is maintained.


Safety and performance by design

Federal approval for GVM upgrades require rigorous testing to ensure that the vehicle performs as well or better than when it left the original manufacturer.
You can be sure that your Tough Dog GVM upgraded 4WD will stop and handle well, even with the increased load on board.
Depending on the vehile, the following testing is required:
  • Finite Element Analysis (FEA) testing: A check of the maximum load carrying capacity of the vehicle's axles.
  • Brake Testing: Laden and Unladen brake testing as well as testing under partial system failure to comply with ADR35/00
  • ESC Testing: If required, this test ensures that the ESC system's response is the same or better than the original vehicle.

The GVM of any vehicle is the weight in kilograms that the manufacturer has specified as being the maximum that the vehicle can weigh when fully laden. Tough Dog GVM upgrades allow a vehicle to be certified to carry a greater amount than the original manufacturer, without breaching applicable ADRs or laws.
You can upgrade the GVM of a vehicle using either Federal approval or State based approval, depending on whether the vehicle has been registered or not.
  • If the vehicle has never been registered, Federal approval can be applied. The Tough Dog GVM kit comes complete with an additional compliance plate which will be fixed to the vehicle.
  • If the vehicle is already registered, the data used in Federal compliance is used in conjunction with a vehicle inspection by an authorised State engineer to certify the vehicle.

Get up to an extra 859KG payload - Upgrade your GVM to 4139KG

This Lift Kit and its Height Variations

Suppliers are often not open about this topic from the initial purchase. However, at we believe in honesty and providing customers with all the information relevant to their purchase. The below is not exclusive to TJP Auto & 4x4, every brand of lift kit and every company that sells lift kits understands the below and works through it.

In the title of this lift kit a specific height increase is referenced. Although this is accurate, due to the complicated nature of suspension and numerous varying factors between each vehicle, such as accessories, factory ride height, sag due to age, use and pre-existing conditions. There will always be a tolerance for the final lift height increase that your 4WD receives both front and rear may vary to the one listed in the products title.

If we are provided with all the correct constant load details and we supply the correct springs. Your 4WD will get the correct lift height, within tolerance of as advertised. However due to external factors the tolerance my vary as much as + or – 15mm.

External factors that affect lift heights
  • On top of our engineering, we have installed this lift kit on thousands of 4WD’s across Australia and each with various setups. This has given us the data to determine the average lift height increases. The height increase referenced in the title of this lift kit is based on that average number.
  • If the vehicle has sagged already due overloaded springs caused by age, use and accessory installation. Then lift height change will likely be greater than the one listed in the products title. However, even with pre-existing sag the lift will take the vehicle back to OE ride heights + the increased lift mentioned.
  • Every vehicle that comes off the factory floor has a tolerance variation in factory ride heights. Therefore, the final before and after measurements, both front and rear will always be different from vehicle to vehicle. Which means that even though this lift kit specifies a specific lift height in the title, due to the varying standard ride heights of each vehicle the lift you may receive will vary.
  • If you do not provide our team with the correct info then we will not be able to supply you with the corrects springs, which will affect the lift height increase. Be sure that when our team reaches out to confirm all details you give them all info required.



Springs & Lift Heights

Regarding the below, when you are order a lift kit . Our suspension experts will call you to confirm all details and requirements before processing your order. We do this to make sure you get the best service and the best lift kit for your 4WD. Don’t stress about the finer details as we will take care of it. However, we note the below so you can understand the complexity.

As springs are what lift your 4WD, to ensure you get the correct height increase (lift) it is paramount that we supply the correct springs for your 4WD’s constant loads and intended use.

Although all lift kits specify a specific lift height in the title. As your 4WD has front and rear springs this means you will have a front lift height and a rear lift height. The spring rates we supply in this lift kit are determined by the weights you carry, a suspension height increase.

Keep in mind that both the front & rear springs work in conjunction with one another. If spring rate for either the front or rear is wrong, this could cause an uneven lift. Making the vehicle nose down or nose up which is not the outcome we want. So after purchasing when talking to our suspension experts, be certain to provide our team with as much info as possible in regards to the vehicles use and also constant loads.

To get the correct springs for your car, you must match your vehicles constant load/weight to the correct spring rates. For example, if you carry 250kgs you should get a spring that best matches that load.

We recommend you get all your constant load accessories sorted before you get a lift kit installed, this will ensure you have a level lift and the best ride from the get-go and wont require future spring changes. A ‘constant load’ is the accessories/gear that will be installed or in the vehicle 24/7.

You do not want to get a spring that is rated less than the load you carry at constant. If you do this, you will overload your spring and it will sag/fail. You can overload a spring by carrying too heavy of a load (front/rear) or by towing a boat caravan that adds extra weight to the tow ball. For example, if you have a 300kg rated rear spring but load your rear to 500kg, then your rear spring would fail and sag. The same applies to the front, with various engines and accessories having different weights such as alloy bull bar, steel bull bar, bumper bars, steel winch, synthetic winch, bash plates, tow hook, batteries, diesel engine, petrol engines, etc.

The flipside to the above, is that you do not want to get a spring that is rated too high for what you carry at constant. For example, you do not want to get a spring that is rated to 300kg if you only carry 100kg constantly. If you do this you will have a very stiff ride and it could lead to suspension failure such as shock top outs, coil spring trap issues and more.

If you are carrying any dynamic load, including extra load on the weekends, or tow anything. Then you will need an airbag kit to help. Airbag kits are designed specially not to carry weight but to help support your springs to handle any extra weight you may carry occasionally, like a boat, caravan, camper, trailer, or general load increase.

Again, please don’t stress too much about the above. As, after you order this lift kit, our suspension experts will call you to make sure you get the right kit, by confirming all your vehicle details and requirements.

If you have any questions, before you make a purchase. Please use our online chat or call us.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax.
